Wenglor

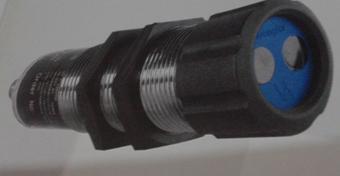

Universal Reflex Sensor

Electrical Data :
Power supply : 10 ... 30 vdc
Power consumption : < 40mA
Switching frequency : 1 kHz
Response time : 500
Temperature drift : <10 %
Temperature range : -25 ... 60 C
Switching ouput voltage drop : < 2.5V
Residual current  switching output : <50
Short circuit protection : yes
Reverse polarity protection : yes
Overload protection : yes

Mechanical data :
Housing : bras nic plated
Fully encapsulated : yes
Protection mode : Ip65

Model : UC44PC3S421, UC44PCS420, UF44PA3S362, UF44PA3S365, UC55PCV3, UM55PA2, UM55PCV2, UM55PCT2, UM55NCT2, UM55PA, UF55VC/TCH3, UF55VC/TCH, UC66PA3, UC66PCV3, UF66PA3, UF66PCV3, UF66VCF3, UF66NA3, UF66KB, UC88PVC3, UC88NA3, UF88PA3, UF88VCF3, UF88NCV3, UF88KB, UF87PA3, UF87PCV3, UF87NA3, US87PCV3, US87PCV
