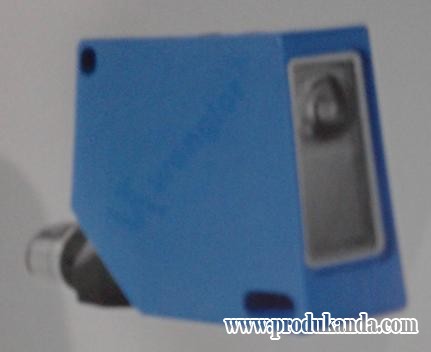

Print Mark Sensors
- High geometric resolution and very high contrast resolution
- High switching frequency : 25 kHz
- Teach-in dynamic teach-in, external teach in, RS 232Interface
- Very small spot : 0.7 x 2.0 mm
Electrical Data :
Power supply : 10 .. 30 vdc
Power consumption : <50 mA
Switching frequency : 25 kHz
Response time : 20
On/ Off delay : yes
Time delay : 1 ... 100 ms
Temperature drift : <1%
Temperature range : -25 ... 60 c
Switching out put : 2
Switching out put voltage drop : 1.5 V
Short circuit protection : yes
Reverse polarity protection : yes
Lockable : yes
Serial interface : RS232
Baud rate : 38400 bdDigital inputs : 2
Resolution : 100 gray scale
Mechanical Data :
Adjustment : Teach - in
Housing : plastic
Protection mode : IP67
Connection : M 12x1
Protection insulation : up to 50V
Type : WP02PAT80, WP02NAT80, WP04PAT80, WP04NAT80
