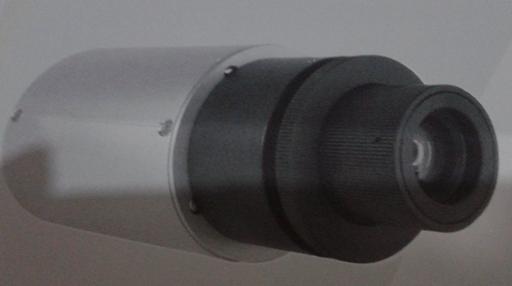

Line Sensor
Four operating modes
RS232 interface
Simple adjustment wwith pc
Simple process monitoring
Electrical data :
Power supply : 18 ... 30 vdc
Power consumption : 100 mA
Switching frequency : 75 Hz
On off delay : yes
Time delay : 0 ..1 s
Temperature range : 0 .. 50 c
Threshold values : adjustable
PNP switching output / switching current : 200mA
Switching output overload protection : yes
PNP error out put / switching current : 200mA
Error out put short circuit protection : yes
Error out put overload protection : yes
Analogue out put : 0 .. 10 v
Out put resistance analogue out put : 470 Ohm
Serial interface : RS-232
Baud rate : 9,6 / 19,2 kBd
Resolution : 2000 pixel
Resolution : 256 gray scale
Trigger input : yes
Mechanical data :
Protection mode : IP 54
Connection : M 12 x 1
Type : ZKA100
