Wenglor

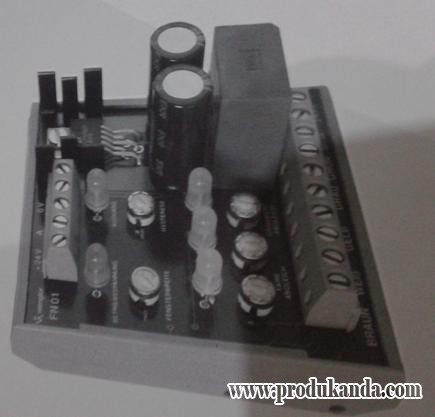

Evaluation Unit

Adjustable colour sensitivity
Any four colours can be selected
External Teach in / external triggering
Teach in

Electrical data :
Power supply :  20  ... 30 Vdc
Power consumption with halogen bulb : < 1A
Power consumption without halogen bulb :  < 100mA
Switching frequency : 1kHz
Response time with 1 colour channel : 500
Response time with 2 colour channel : 600
Response time with 3 colour channel : 900
Response time with 4 colour channel : 1400
Voltage out put light source : 6 vdc
Current load voltage out put light source : 2A
Voltage out put sensor : 20 .. 30 vdc
Current load voltage out put sensor : 50mA
Temperature range : 0 .. 50 C
Colours out put : 4
PNP error out put / switching current : 400mA
Error output : 1
Short circuit protection : yes
Reverse polarity protection : yes
Analogue inputs : 3
Analogue input : 0 ... 10V

Mechanical data :
Housing : Alumunium
Protection mode : IP 65
Connection : PG9

Type : FN04, FN 01
