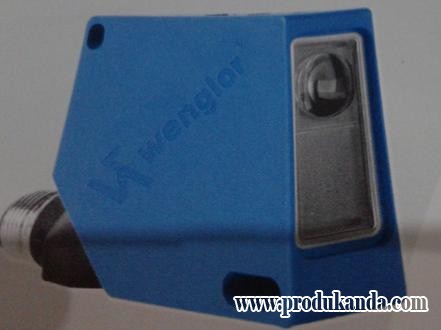

Wenglor
Colour sensor

Extremely fine colour nuances can be recognised
Reflex mode operation
RGB signal via te RS 232 interface
Tech in and external tech in

Electrical data :
Power supply : 10 .. 30 v
Power consumption : < 50mA
Switching frequency : 1660 Hz
On /Off delay : yes
Time delay : 10 .. 1000 ms
Temperature range :  - 25 ... 60 C
Switching ouput : 3
Switching out put voltage drop : 1.5 V
PNP switching ou put / switching current : 200mA
Short circuit protection : yes
Reverse polarity protection : yes
Serial interface : RS232
Baud rate : 38400bd
Procotol : 8 N 1
Digital inputs : 2

Mechanical data :
Adjustment : Teach in
Housing : Plastic
Protection mode : IP 67
Connection : M 12 x 1
Protective insulation : Up to 50 V

Type : FP04PCT80, FP11PCT80, FD01,
