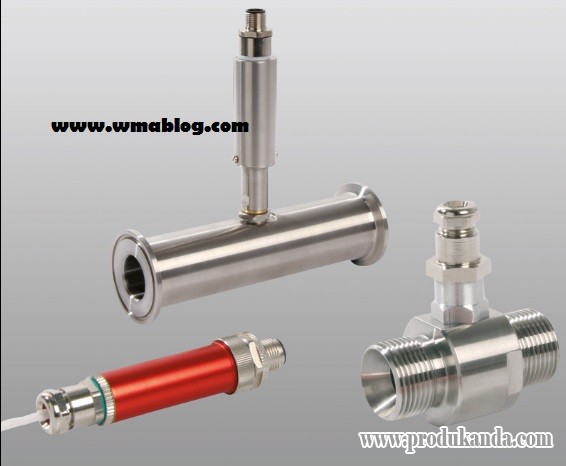

Turbine flow meters are precise and reliable measuring equipment, designed for varied applications. VTR flow meters can be installed even under the harshest application conditions including oil, petrochemical and chemical industries as well as other industrial sectors.

Basically, the VTR series consists of a rotor, the housing and the measurement pick-up. The flow of fluid activates the rotor. When the rotor blades interrupt the magnetic field lines of the pick-up system, the motion of the rotor is detected. As a result of the specific inner diameter, the turbine's revolutions are directly proportional to the flow.

Performance data

• Flow range 110 l/h up to 7.500 m3/h
• Pressure range up to 250 bar
• Temperature range – 40°C up to +120°C
• Frequency range up to 1.300 Hz
• Viscosity range 1 up to 5 cSt

Applications

• Water-like substances
• Water
• Oils
• Petrochemicals
