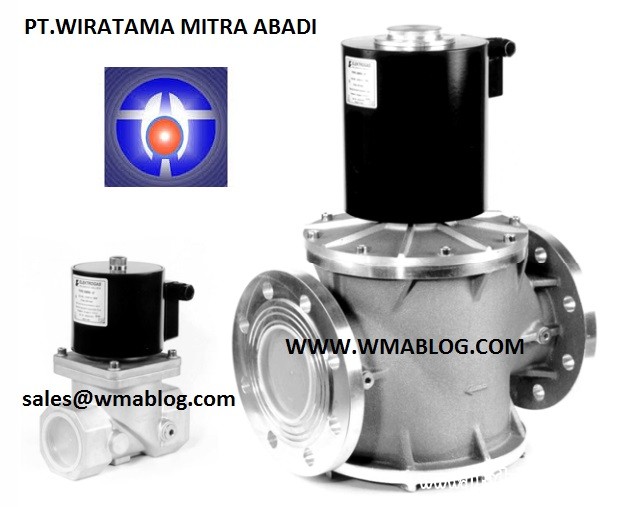

VMR-VMR-OTN

Safety selenoid valve for gas

Fast opening and fast closing type DN8…DN150

Feature :

The valves made of alumunium alloy die-cast (or hot-pressed brass for OTN version), with a wide range for inlet/outlet connection from DN 8 up to DN 150.
Suitable for use with air and non- aggressive gases included in the 1,2 and 3 families (EN 437).
This valve is open only when energized.if for any reason power supply goes down, the valve closes immediately (intrinsic safe ).
Qualified for continous service (100% ED).
An incorporated fine mesh filter protects the valve seat and disc as well as downstream components and prevents dirty contamination (except brass models).
Provided with G1/4 pressure gauge on two sides in the inlet chamber (except brass models).Flanged model are provided with gauges in the outlet chamber too. Other gauge points on request.
Provided with G1/8 connection on the bottom for closed position indicator micro switch from DN65 to DN 150 (on request from ¾” to 2”)
