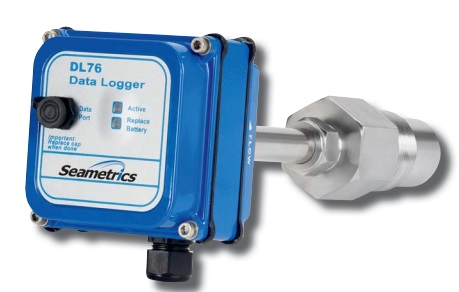

The DL76 is a battery-powered data logger that can be used with any Seametrics fl owmeter. It stores pulses for up to 3 years, depending on the user-selected frequency of reading. Indicator lights on the unit fl ash to indicate when it is functioning and when the battery is low.

     The DL76 can be factory-mounted on the meter or remotely mounted. Housings are rugged cast aluminum, gasketed for environmental protection. When a DL76 logger is placed into operation, it is easily set up using a laptop computer. Data is also retrieved from the DL76 by means of a laptop and can be analyzed on the laptop or easily loaded on a desktop computer for analysis.

     *FlowInspector version 2 software (ordered separately) is required for the downloading, storing, viewing, graphing, charting and printing of data in several formats. FlowInspector requires a PC with Windows 98, NT, 2000, XP, Vista or Windows 7; CD-Rom drive; 800 x 600 screen resolution; serial port or USB/serial adapter; and a Seametrics DC3 data cable. FlowInspector can be used with an unlimited number of dataloggers

FEATURES
• Easy to set-up, easy to use
• Weeks/months/years of data storage
• User-selected sampling interval
• Data retrieval with laptop computer
• Single data retrieval device serves multiple data loggers

APPLICATIONS
• Water usage monitoring, reporting, and management
• Custody transfer regulation
• Peak demand monitoring

MOUNTING

There are three mounting configurations for a DL76: Meter mount for mechanical meters, meter mount for insertion magmeters, and wall mount ( DL76W) . The meter mount models match up to any Seametrics lower square housing. All configurations can be factory-ordered or field-installed. Converting from one mounting configuration to another requires use of MK10 or MK20 mounting kits.
