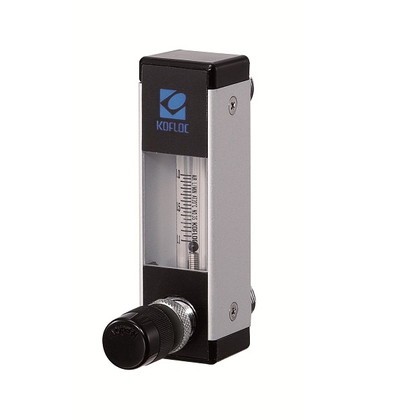

MODEL RK1650 SERIES
This is a completely renewed model of existing KOFLOC RK1600R with sophisticated design to fit sophisticated laboratory or plant equipment.
Features
-Compact
A compact flowmeter with variations of total length of 84 mm,104mm,124mm and 154mm for choice according to the user's needs
-Low pressure loss
Pressure loss minimized to allow applications for low supply pressure
-Superior stability
All tubes are precision-formed to provide the float with outstanding repeatability and stability
-Economical
A flowmeter at quite affordable price achieved through our all-out effort at streamlined design
Applications
-For environmental instrumentation systems
-For general instruments for analysis
-For purge systems
-For semiconductor manufacturing equipment
Standard Specifications
|
Fluids |
Air,N2,O2,H2,He,Ar,and CO2 |
|
Flow range(Full scale) |
1L,2L,3L,5L,10L,15L,20L/MIN |
|
Accuracy |
FS±5%(Measurement point) |
|
Proof pressure |
0.8MPa for 5L/MIN or less |
|
Available scale |
10:1 |
|
Materials |
S |
BS |
|
|
Body block and some other components |
SUS304; SUS303 |
Brass |
|
|
Tapered tube |
Pyrex®, glass |
||
|
Packing |
FKM |
NBR |
|
|
Float |
Pyrex,SUS316, glass |
||
|
Protective cover |
Acrylic resin |
||
|
(Temperature resistance) |
MAX60° |
||
|
Connection |
Rc1/8(Standard);Rc1/4(Optional) |
||
