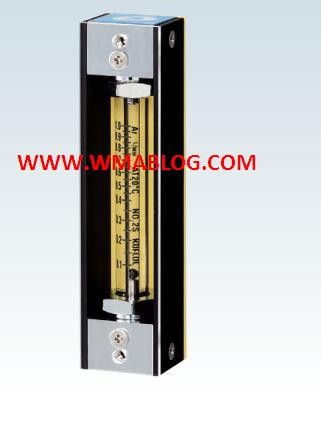

MODEL RK1000 SERIES
This is a glass tube float type flowmeter materialized through our all-out effort at streamlining the production line to offer users a low-cost model that can be shipped in a reduced period of delivery. While it is outstandingly compact(total length of the smallest type: 80 mm), it provides high performance in stability that bears comparison with any high precision models and is optimum to form a part of the customer's scientific instrumentation system.
Feartures
-Superior stability
-Economical
-Super-compact
-Wide variations
Applications
-For integration into equipment panel
-For gas purge systems
-For measurement of welding gas flows
-For various types of analyzers
-For semiconductor manufacturing equipment
Standard Specifications
|
Fluids |
Air,N2,O2,H2,He,Ar,and CO2 |
|
Flow range(Full scale) |
1L,2L,3L,5L,10L,15L,20L/MIN |
|
Accuracy |
FS±5%(Measurement point) |
|
Proof pressure |
0.8MPa for 5L/MIN or less |
|
Available scale |
10:1 |
|
Materials |
S |
BS |
|
Body block and some other components |
SUS304; SUS303 |
Brass |
|
Tapered tube |
Pyrex®, glass |
|
|
Packing |
FKM |
NBR |
