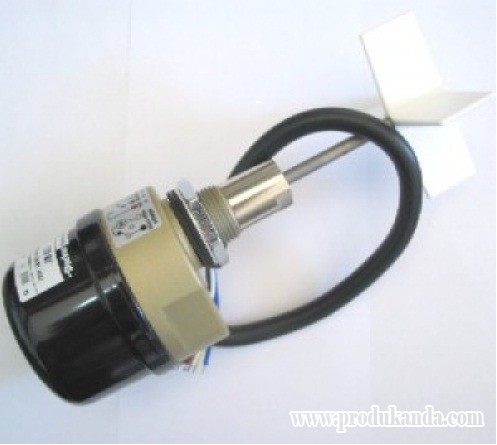

JB-SD Series

Features

• A compact type product that can be easily maintained and repaired in small

spaces

• Optimum for controlling powders and fine particles such as flour, wheat flour,

sugar, and plastic materials

• Highly sensitive with built-in springs that can be adjusted to four levels

• Usable in various kinds of small hoppers such as grain tanks and rice husk tanks



Specifications Item Unit JB-SD Voltage V AC 110V, AC220V(50/60Hz) Regulation of voltage % ±10 Power consumption W When the wing turns: 3W Contact point capacity AC 250V, 3A Pressure used Atmospheric pressure (ATM) Rotation speed RPM 6 Torque g/cm 300~600 Oprating Temperature °C 0~60 (Non-Condencing)
