For coolants (RB Series)

Motor capacity 3-phase, 200 V, 15 W

Motor rotation speed 27/31r.p.m

Belt width 20mm

Recovery capability Approx. 12 l/h (For mineral oil)

Installation depth (L) 115mm,165mm,250mm,350mm,400mm 　＊Contact us about different voltage, CCC and CE certificates. Belt types other than listed above are available.





    Floated oil in the machining tank and washing tank is recovered by the specially-developed belt. The oil skimmer contributes to machining accuracy improvement, machining fluid corruption and deterioration prevention, and washing accuracy improvement.

   The floated oil is absorbed on the belt while the belt goes into the fluid. As shown to the right, Model TB-75 (for washers) has a special belt suitable for quick and efficient recovery of dirty washing fluid and floated oil. Also, Model RB-200 (for coolants) has a special belt suitable for efficient recovery of floated oil such as lubricant.

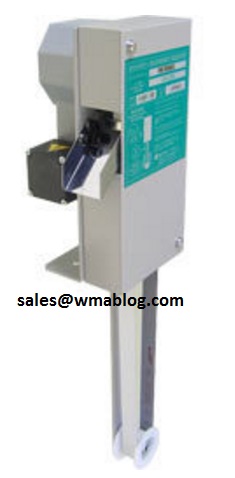

 For coolants（Model RB-200）

A palm-sized model. Suitable for downsizing of machine tools.



○ Highly-efficient floated oil recovery is achieved by the oleophilic and water-shedding special flat belt.

○ The recovery amount is constant as long as the belt touches the liquid level, i.e., the specially designed for liquid level change.

○ For the coolant tank use only. Not suitable for high-temperature liquid.
