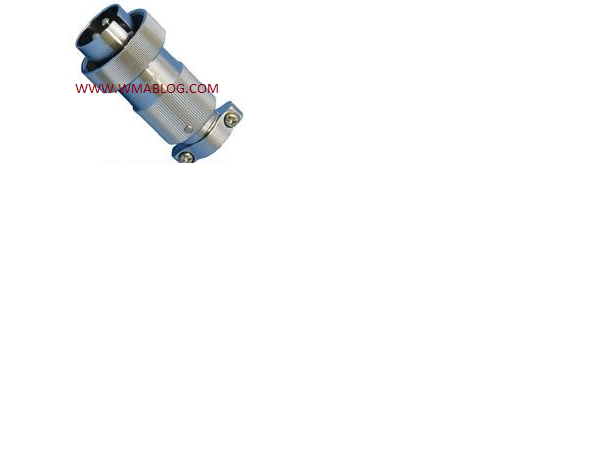

Electrical Connector Nanaboshi
Type : G NWPC 162 PM
Plug Connector Female
Number of contact : 2 pin
Kapasitas : 15A 250V
Brand : Nanaboshi,Jepang
Diameter Of Cable
Shell Size 16
Symbol 5 : 4.5~6.0
Symbol 7 : 6.1~8.0
Symbol 9 : 8.1~10.0
FEATURE
1. Cable drawing-out section is construction to keep cables doubly by use of rubberpacking and cable clamps
2. Thermosetting epoxy resins have been employed for insulators
3. Seven kinds of shell size and various shell type are available for a variatey of applications
ORDER CORDING
NWPC-162-PM
- NWPC > Series deignation
- 16 > Shell size
- 2 > Number of contact
- P > Shell shape
- M > Contact Shape
- M > Contact Shape
- ( ) > Symbol representing the outer diameter of the cable used
Cable termination : Soldering
Operating temperature : -40 derajat celcius to +85 derajat celcius
Shell Material Brass or Zinc alloy die
Insulator : Epoxy resin
Contact : Copper alloy
Packing : Synthetic rubber
