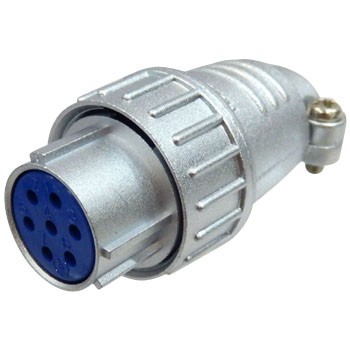

Connector Nanaboshi
Model : NJC-207-PFNumber of contact : 7 pin
Type : S 10A 250V
Brand : Nanaboshi,Japan
FEATURE :
1. The 5-key system guide makes for smooth combination.
2. A one-touch lock mechanism is used in the combination system.
3. This product has received standards certifications.
ORDER CODING :
NJC-207-PF
NJC : Series designation (NJC)
20 : Shell size (16*20*24*28*32)
7 : Number of contacts (2~37)
PF : Type of shapes of connectors
In case UL.CSA & TUV certified product is specified
Example : NJC-202-PM (UL.CSA)
Example : NJC-202-PM (TUV)
MATERIAL AND FINISH
1. MATERIAL
Shell : Zinc alloy
Aluiminium alloy (Shell size 28*32)
Insulator : Synthetic resin
Contact : Copper alloy
2. FINISH
Shell : Crape chrome plating
Contact : Silver plating
Gold Plating
Cable termination : Soldering
