•Feature
1.Basic type of round connectors usable for all kinds of circuits
2.Solid and simple construction provides mechanical and electricalstability
3.Thermosetting epoxy resins have been employed for insulator
4.Seven kinds of shell size and various shell type are available for a variety of applications
•Material and Finish
1.Shall : - Material : Zinc alloy die casting or Brass
- Finish : Chrome Plating
2.Insulator : - Materials : epoxy resin
3. contact : - materials : Copper alloy
- Finish : Nickel, Silver or Gold plating
• Cable Termination : Soldering
•Operating temperature range : – 40°C to +120°C

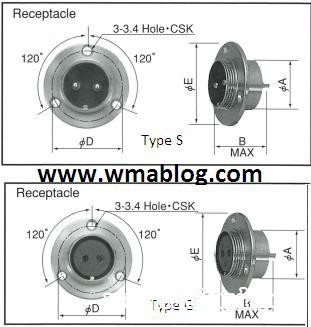

•NCS Receptacle Type S
1.NCS-14*-R
-Number of Contact : 1
- A : 14
- B : 27.5
- D : 23
- E : 31
2. NCS-14*-R
-Number of Contact : 2
- A : 14
- B : 24
- D : 23
- E : 31
3. NCS-16*-R
-Number of Contact : 1
- A : 16
- B : 27.5
- D : 24
- E : 32
4. NCS-16*-R
-Number of Contact : 2,3,4
- A : 16
- B : 23
- D : 24
- E : 32
5. NCS-25*-R
-Number of Contact : 2,3,4,5,6,7,8
- A : 25
- B : 26
- D : 34
- E : 42
6. NCS-30*-R
-Number of Contact : 2,3,4,5,6,7,7H,8,13
- A : 30
- B : 29
- D : 38
- E : 46
7. NCS-40*-R
-Number of Contact : 2,3,4,5,6,8,10,12,16,20
- A : 40
- B : 35.5
- D : 50
- E : 58
8. NCS-50*-R
-Number of Contact : 4,8,10,15,25
- A : 50
- B : 45
- D : 60
- E : 68
NCS Receptacle Type G
1. NCS-16*-RF
-Number of Contact : 2,3
- A : 16
- B : 23.5
- D : 24
- E : 32
2. NCS-25*-RF
-Number of Contact : 2,3,4,5,6,7
- A : 25
- B : 27
- D : 34
- E : 42
3. NCS-30*-RF
-Number of Contact : 2,3,4,5,6,8
- A : 30
- B : 30
- D : 38
- E : 46
4. NCS-30*-RF
-Number of Contact : 2,3,4,5,6,8,10,12,16,20
- A : 44
- B : 41
- D : 56
- E : 64
