•Electrical Performance

  1.Rating : 5A 250V

  2. Withstand Voltage : AC 1,000V

  3.Contact resistance : 5mΩ or less

  4. Insulation resistance : 1,000MΩ or more

  5. AWQ : #20 or #22

•Material and Finish

  1.Shell : - Material : Zinc alloy

                - Finish : Crape Chrome plating

  2. Insullator : - Material : Synthetic resin

  3. Contact : - Material : Copper alloy

                       - Finish : Gold Plating

•Working Temperatured range :  –25°C+85°C

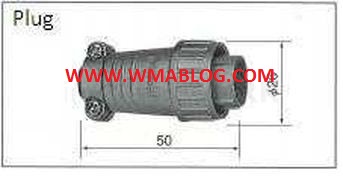

• Crimp Plug Type S

1.NJC-2012C-PF

• Crimp Plug Type G

1.NJC-2012C-PM
