Feature
1. Cable drawing-out section is constructed to keep cables doubly by use of rubber packing and cable clamps.
2. Thermosetting epoxy resins have been employed for insulators.
3. Seven kinds of shell size and various shell type are available for a variety of applications.
Order Cording
NWPC = Series designation
25 = Shell size
2 = Number of contacts
P = Shell shape
M = Contacts shape
_ = Symbol representing the outer diameter of the cable used
· Cable termination : Soldering
· Operating temperature range : -40°C to + 85°C
· Water resistance : Water pressure 0.5kPa 24hrs.
· Material and Finish :
Shell
- Material : Brass or Zinc alloy die casting
- Finish : Chrome plating
Insulator
- Material : Epoxy resin
Contact
- Material : Copper alloy
- Finish : Nickel, Silver or Gold plating
Plating
- Material : Synthetic rubber

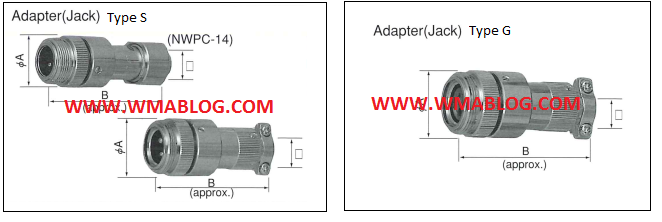

Adapter (Jack) Type S
1. NWPC-14*-Ad_
Number of contacts : 1,2
A : 21
B : 62
2. NWPC-16*-Ad_
Number of contacts : 1,2,3,4
A : 25
B : 59
3. NWPC-25*-Ad_
Number of contacts : 2,3,4,5,6,7,8
A : 32
B : 72
4. NWPC-30*-Ad_
Number of contacts : 2,3,4,5,6,7,7H,8,13
A : 37
B : 80
5. NWPC-40*-Ad_
Number of contacts : 2,3,4,5,6,8,10,12,16,20
A : 47
B : 100
6. NWPC-50*-Ad_
Number of contacts : 2,3
A : 57
B : 131
7. NWPC-50*-Ad_
Number of contacts : 4,8,10,15,25
A : 57
B : 122
8. NWPC-60*-Ad_
Number of contacts : 2,3,4
A : 67
B : 150.5
9. NWPC-60*-Ad_
Number of contacts : 10,15,30,32,40
A : 67
B : 142
Adapter (Jack) Type G
1. NWPC-16*-AdF_
Number of contacts : 2,3
A : 25
B : 59
2. NWPC-25*-AdF_
Number of contacts : 2,3,4,5,6,7
A : 32
B : 72
3. NWPC-30*-AdF_
Number of contacts : 2,3,4,5,6,8
A : 37
B : 80
4. NWPC-44*-AdF_
Number of contacts : 2,3,4,5,6,8,10,12,16,20
A : 47
B : 100
5. NWPC-54*-AdF_
Number of contacts : 4,8,10,15,25
A : 66
B : 125
6. NWPC-64*-AdF_
Number of contacts : 2,3,4
A : 76
B : 151
7. NWPC-60*-AdF_
Number of contacts : 10,15,30,32
A : 67
B : 142
Orde Cording :
NWPC : Series designation
20 : Shell Size
7 : Number of Contact
PM : Type of shapes if connector
_ : Symbol repsenting the outher diameter of the cable
