Feature

1.       Cable drawing-out section is constructed to keep cables doubly by use of rubber packing and cable clamps.

2.       Thermosetting epoxy resins have been employed for insulators.

3.       Seven kinds of shell size and various shell type are available for a variety of applications.

Order Cording

NWPC = Series designation

25 = Shell size

2 = Number of contacts

P = Shell shape

M = Contacts shape

_ = Symbol representing the outer diameter of the cable used

·         Cable termination : Soldering

·         Operating temperature range : -40°C to + 85°C

·         Water resistance : Water pressure 0.5kPa 24hrs.

·         Material and Finish :

Shell

-          Material : Brass or Zinc alloy die casting

-          Finish : Chrome plating

Insulator

-          Material : Epoxy resin

Contact

-          Material : Copper alloy

-          Finish : Nickel, Silver or Gold plating

Plating

-          Material : Synthetic rubber

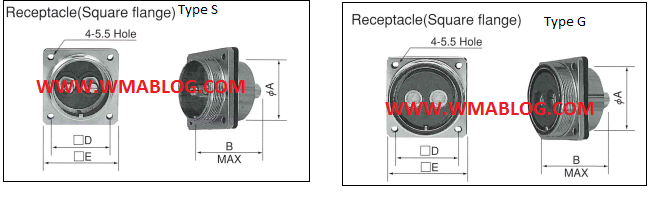

Receptacle (Square flange) Type S

1.       NWPC-50*-R_

Number of contacts : 2,3

A : 50

B : 56

D : 50

E : 64

2.       NWPC-50*-R_

Number of contacts : 4,8,10,15,25

A : 50

B : 47

D : 50

E : 64

3.       NWPC-60*-R_

Number of contacts : 2,3,4

A : 60

B : 57.8

D : 56

E : 70

4.       NWPC-60*-R_

Number of contacts : 10,15,30,32

A : 60

B : 49.5

D : 56

E : 70

Receptacle (Square flange) Type G

1.       NWPC-54*-RF_

Number of contacts : 2,3

A : 54

B : 54

D : 52

E : 66

2.       NWPC-54*-RF_

Number of contacts : 4

A : 54

B : 46.5

D : 52

E : 66

3.       NWPC-54*-RF_

Number of contacts : 8,10,15,25

A : 54

B : 43

D : 52

E : 66

4.       NWPC-64*-RF_

Number of contacts : 2,3,4

A : 64

B : 56

D : 62

E : 76

5.       NWPC-60*-RF_

Number of contacts : 10,15,30,32

A : 60

B : 49.5

D : 56

E : 70


Orde Cording :
NWPC : Series designation
20 : Shell Size
7 : Number of Contact
PM : Type of shapes if connector
_ : Symbol repsenting the outher diameter of the cable
