Feature

The 5-key system guide makes for smooth combination.

 A one-touch lock mechanism is used in the combination system.[NRW]

This product has received standards certifications.

Material and Finish

1.Shell

- Material : Zinc Alloy ; Aluminum alloy [shell size 28.32]

- Finish : Specially chemical finish

Insulator

-Material : Shyntetic resin

Contact

- Material : Copper Alloy

-  Finish : Silver plating ; Gold plating

Packing

- Material : Shyntetic rubber

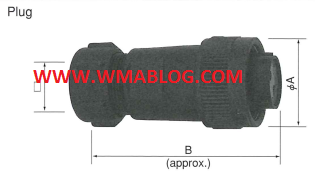

Plug S Type

1.  NJW-16*-PF_
-  Number of contacts : 3,5,8

A : 22

B : 58

2.  NJW-20*-PF_

- Number of contacts : 2,3,4,5,7,10,12,14

A : 26

B : 60

3.NJW-24*-PF_
 - Number of contacts : 2,3,4,5,10,14,16,21,24

A : 30

B : 67

4. NJW-28*-PF_
- Number of contacts : 16,24,31,37

A : 34

B : 72

5. NJW-32*-PF_

- Number of contacts : 3,4

A : 44

B : 101

Plug G Type

1.  NJW-16*-PM_
- Number of contacts : 3,5,8
 A : 22

B : 58

2. NJW-20*-PM_

- Number of contacts : 2,3,4,5,7,10,12,14

A : 26

B : 60

3.NJW-24*-PM_

- Number of contacts : 2,3,4,5,10,14,16,21,24
A : 30

B : 67

4.  NJW-28*-PM_

- Number of contacts : 16,24,31,37

A : 34

B : 72

5. NJW-32*-PM_

- Number of contacts : 3,4

A : 44

B : 101

Orde Cording :
NRW : Series designation
20 : Shell Size
7 : Number of Contact
PM : Type of shapes if connector
_ : Symbol repsenting the outher diameter of the cable
