Feature
1. The 5-key system guide makes for smooth combination.
2. A one-touch lock mechanism is used in the combination system.[NRW]
3. This product has received standards certifications.
Material and Finish
Shell
- Material : Shyntetic resin
Insulator
- Material : Shyntetic resin
Contact
- Material : Copper Alloy
- Finish : Silver plating
Gold plating
Packing
- Material : Shyntetic rubber
Cable termination : Soldering
Water resistance : Water pressure 40kPa 24hrs.
Symbol representing the outer of the cable used :
1. Shell size : 16
Symbol : a). 5
b). 7
c). 8
d). 9
e). 11
Outer diameter of cable : a). Ø 4.0 ~ Ø 4.8
b). Ø 5.7 ~ Ø 6.8
c). Ø 6.9 ~ Ø 7.9
d). Ø 8.0 ~ Ø 9.4
e). Ø 9.5 ~ Ø 11.0
2. Shell size : 20
Symbol : a). 6
b). 8
c). 10
d). 12
Outer diameter of cable : a). Ø 5.5 ~ Ø 6.3
b). Ø 7.0 ~ Ø 8.5
c). Ø 8.6 ~ Ø 10.5
d). Ø 10.6 ~ Ø 12.5
3. Shell size : 24
Symbol : a). 8
b). 11
c). 13
d). 15
Outer diameter of cable : a). Ø 6.8 ~ Ø 8.0
b). Ø 9.5 ~ Ø 11.0
c). Ø 11.1 ~ Ø 13.0
d). Ø 13.1 ~ Ø 15.0
4. Shell size : 28
Symbol : a). 10
b). 12
c). 14
d). 16
e). 18
Outer diameter of cable : a). Ø 9.0 ~ Ø 10.9
b). Ø 11.0 ~ Ø 12.4
c). Ø 12.5~ Ø 14.0
d). Ø 14.1~ Ø 16.0
e). Ø 16.1~ Ø 18.0
5. Shell size : 32
Symbol : a). 16
b). 20
Outer diameter of cable : a). Ø 11.5 ~ Ø 16.0
b). Ø 15.5 ~ Ø 20.0
Gold plating contact :
1. Shell size : 16
Number of contacts : 8
2. Shell size : 20
Number of contacts : 14
3. Shell size : 24
Number of contacts : 21,24
4. Shell size : 28
Number of contacts : 31,37
Operature temperature range :
1. Shell size : 16
Number of contacts : a). 3,5
b). 8
Operating : a). -25~+85°C
b). -25~+60°C
2. Shell size : 20
Number of contacts : a). 2,3,4,5,7,10,12
b). 14
Operating : a). -25~+85°C
b). -25~+60°C
3. Shell size : 24
Number of contacts : a). 2,3,4,5,10,14,16
b). 21,24
Operating : a). -25~+85°C
b). -25~+60°C
4. Shell size : 28
Number of contacts : a). 16,24
b). 31,37
Operating : a). -25~+85°C
b). -25~+60°C
5. Shell size : 32
Number of contacts : 3,4
Operating : -25~+85°C

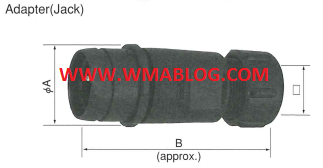

Adapoter (Jack) S Type :
1.
NRW-20*-AdM_
Number of contacts : 2,3,4,5,7,10,12,14
A : 26
B : 60
2.
NRW-24*-AdM_
Number of contacts : 2,3,4,5,10,14,16,21,24
A : 32.2
B : 77
3.
NRW-28*-AdM_
Number of contacts : 16,24,31,37
A : 37.1
B : 83
Adapoter (Jack) G Type :
1.
NRW-20*-AdF_
Number of contacts : 2,3,4,5,7,10,12,14
A : 26
B : 60
2.
NRW-24*-AdF_
Number of contacts : 2,3,4,5,10,14,16,21,24
A : 32.2
B : 77
3.
NRW-28*-AdF_
Number of contacts : 16,24,31,37
A : 37.1
B : 83
Orde Cording :
NRW : Series designation
20 : Shell Size
7 : Number of Contact
PM : Type of shapes if connector
_ : Symbol repsenting the outher diameter of the cable
