NR SERIES CONNECTOR NANABOSHI
Feature
1.The 5-key system guide makes for smooth combination
2.A one-touch lock mechanism is used in the combination system.[NR]
3.This product has received standards certification
Material and Finish
1.Shell : - Material : Zinc alloy ; Alumunium alloy
- Finish : Crape Chrome plating
2.Insulator : - Materials : Synthetic resin
3.Contact : - Materials : Copper alloy
- Finish : Silver plating ; Gold Plating

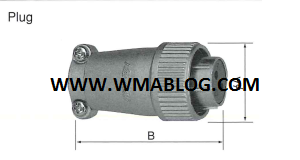

Type S
1.NR-20*PF
-Number o Contact : 2,3,4,5,7,10,12,14
- A : 26
- B : 50
2. NR-24*PF
-Number o Contact : 2,3,4,5,10,14,16,21,24
- A : 31
- B : 55.5
Type G
1. NR-20*PM
-Number o Contact : 2,3,4,5,7,10,12,14
- A : 26
- B : 50
2. NR-24*PM
-Number o Contact : 2,3,4,5,10,14,16,21,24
- A : 31
- B : 55.5
