•Feature
1.The 5-key system guide makes for smooth combination.
2.A one-touch lock mechanism is used in the combination system.[NRW]
3.This product has received standards certifications.
•Material and Finish
1.Shell : - Material : Zinc Alloy ; Aluminum alloy
- Finish : Specially chemical finish
2.Insulator : -Material : Shyntetic resin
3.Contact : - Material : Copper Alloy
- Finish : Silver plating ; Gold plating
4.Packing : - Material : Shyntetic rubber

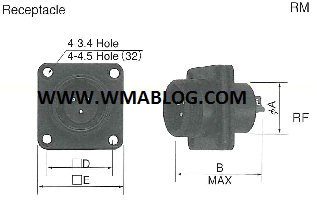

Receptacle Type S
1.NJW-16*-RM
- Number of contacts : 3,5,8
- A : 16
- B : 29.7
- D :20
- E :26
2.NJW-20*-RM
- Number of contacts : 2,3,4,5,7,10,12,14
- A : 16
- B : 29.7
- D :20
- E :26
3.lNJW-24*-RM
- Number of contacts : 2,3,4,5,10,14,16,21,24
- A : 24
- B : 30.5
- D :26
- E :32
4.NJW-28*-RM
- Number of contacts : 16,24,31,37
- A : 28
- B : 28.5
- D : 29
- E : 35
5.NJW-32*-RM
- Number of contacts : 3,4
- A : 32
- B : 39.1
- D :36
- E :45
Receptacle Type G
1.NJW-16*-RF
- Number of contacts :3,5,8
- A : 16
- B : 29.7
- D :20
- E :26
2.NJW-20*-RF
- Number of contacts : 2,3,4,5,7,10,12,14
- A : 20
- B : 29.6
- D :23
- E :29
3.NJW-24*-RF
- Number of contacts : 2,3,4,5,10,14,16,21,24
- A : 24
- B : 30.7
- D :26
- E :32
4.NJW-28*-RF
- Number of contacts : 16,24,31,37
- A : 28
- B : 28.2
- D :29
- E :35
5. NJW-32*-RF
- Number of contacts : 3,4
- A : 32
- B : 39.1
- D :36
- E :45
