Nanaboshi Connector NJC Series Adapter with Flange Type S and Type G

Harga :

CALL

Merk :

Nanaboshi

Pembelian Minimal :

1 Unit

Pengiriman :

1 hari sejak pembayaran

Lokasi :

Jawa Barat - Bekasi

Dilihat :

137 Kali

Update Terakhir :

24-11-2017 10:20

Dapatkan Spesifikasi Harga Nanaboshi Connector NJC Series Adapter with Flange Type S and Type G Produk Terbaik dari Flow Meter Wiratama menyediakan alat untuk mengukur debit dan laju aliran suatu fluida baik untuk aliran liquid

Detail Produk

NJC SERIES CONNECTOR Nanaboshi

Feature

1.The 5-key system guide makes for smooth combination

2.A one-touch lock mechanism is used in the combination system.[NR]

3.This product has received standards certification

Material and Finish

1.Shell : - Material : Zinc alloy ; Alumunium alloy

- Finish : Crape Chrome plating

2.Insulator : - Materials : Synthetic resin

3.Contact : - Materials : Copper alloy

- Finish : Silver plating ; Gold Plating

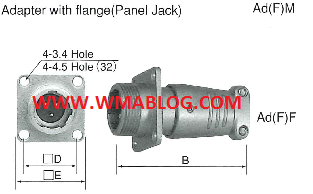

Type S :

1.NJC-16*-Ad(F)M

- Number of Contacts : 3,5,8

- B : 46.2

- D : 20

- E : 26

2. NJC-20*- Ad(F)M

- Number of Contacts : 2,3,4,5,7,10,12,14

- B : 50

- D : 23

- E : 29

3. NJC-24*- Ad(F)M

- Number of Contacts : 2,3,4,5,10,14,16,21,24

- B : 54.3

- D : 26

- E : 32

4. NJC-28*- Ad(F)M

- Number of Contacts : 16,24,31,37

- B : 56.7

- D : 29

- E : 35

5. NJC-32*- Ad(F)M

- Number of Contacts : 3,4

- B : 83.5

- D : 36

- E : 45

Type G :

1.NJC-16*- Ad(F)F
