•Feature
1.Per “DIN/VDE0627” to TϋV Rheinland approved.
2.UL 1977 approved
3.Structure with contact for earth use. (touch have priority over other contacts)
4.Body earth structure [NET]
•Material and Finish
1.Shell : - Material : Zinc Alloy ; Aluminum alloy
- Finish : Crape Chrome plating
2.Insulator : -Material : Shyntetic resin
3.Contact : - Material : Copper Alloy
- Finish : Silver plating
• Cable Termination : Soldering
•Operating temperature range : – 40°C to +100°C
•Protection degree : IP 4X

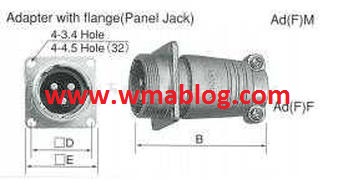

•Adapter with Flange Type S
1.NET-24*-Ad(F)M
- Number of Contact ; 3,4
- B : 54.3
- D :26
- E : 32
2.NET-28*-Ad(F)M
- Number of Contact : 4,8
- B : 57
- D :29
- E : 35
3.NET-32*-Ad(F)M
- Number of Contact : 3,4
- B : 83.5
- D :36
- E : 45
•Adapter with Flange Type G
1.NET-24*-Ad(F)F
- Number of Contact ; 3,4
- B : 54.3
- D :26
- E : 32
2.NET-28*-Ad(F)F
- Number of Contact : 4,8
- B : 57
- D :29
- E : 35
3.NET-32*-Ad(F)F
- Number of Contact : 3,4
- B : 83.5
- D :36
- E : 45
