MODEL PSK-FB SERIES

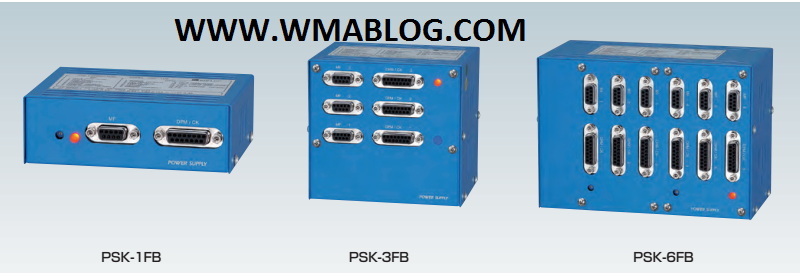

These DC power units can be commonly used for mass flow controller and meters. The 1FB, 3FB and 6FB types can supply power to 1, 3 and 6 lines (units) of mass flow controllers/meters, respectively. A Dsub connector allows quick connection to the unit to which power is to be supplied without time-consuming wiring job, also making signal exchange easier.
Standard Spesifications
|
Type |
PSK-1FB |
PSK-3FB |
SK-6FB |
|
|
Application (Power supply for) |
1 unit |
3 units |
6 units |
|
|
Input voltage (frequency) |
85-132VAC (47-66Hz) |
|||
|
Power consumption |
22 W max. |
70 W max. |
140 W max. |
|
|
Fuse |
125V-0.8A |
125V-3.15A |
125V-6.3A |
|
|
Power Output |
Power source For setting flow values For external indicators |
±15VDC (±5%) +5VDC (±1%) +5VDC (±5%), +15VDC (±5%) |
||
|
Flow I/O signals |
0-+5 VDC (15 VDC max.) |
|||
|
Set point output signals |
0-+5VDC |
|||
|
Working temperature range |
0-40℃ |
|||
|
Working environment (humidity range) |
0-90%RH (No condensation) |
|||
|
AC Power supply |
85-132VAC (47-66Hz) |
|||
|
Weight |
Approx. 0.8 kg |
Approx. 1.3 kg |
Approx. 1.7 kg |
|
