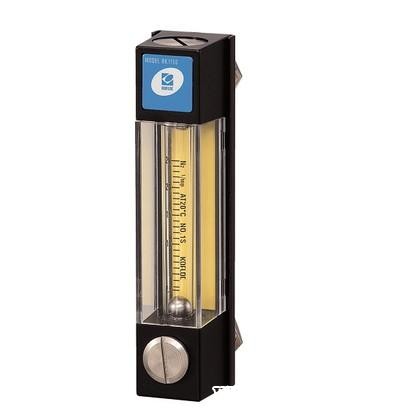

MODEL RK1150 SERIES
These revolutionary low-price flow meters are massproduced for quick delivery. The body material is made of high corrosion-resistant engineering plastic molded into elegant shapes.
Features
-Low price
Rationalized mass production with a resin mold for low cost and quick delivery.
-Easy disassembly/reassembly
Users can easily disassemble the flow meter for cleaning.
-Elegant design
Shapely panel surface without screws and compact design
-Flow meters equipped with a flow control valve are also available.
Flow meters with a simple needle valve or a precision needle valve reduce installation space.
-OEM supply is possible.
The body color, label, and valve shape can be specified for supply on an OEM basis.
Standard Specifications
|
Fluids |
Exclusively for air and N2 |
|
|
Flow range (FS) |
RK1150 |
100ML,200ML,500ML/MIN |
|
RK1150PV |
||
|
RK1150V |
5L,10L,25L,30L/MIN |
|
|
Accuracy |
FS ±10% (Measurement point) |
|
|
Proof pressure |
0.5MPa |
|
|
Available scale |
10:1 |
|
|
Material |
S |
BS |
|
Body block |
Plastic |
|
|
Tapered tube |
Pyrex®, glass |
|
|
Packing |
FKM |
NBR |
|
Float |
Pyrex, SUS316, glass |
|
|
Protective cover |
Acrylic resin |
|
|
Joint |
SUS304 |
Brass |
|
Temperature resistance |
MAX40℃ |
|
|
Connection |
Rc 1/4 (Standard); Rc 1/8 (Optional) |
|
