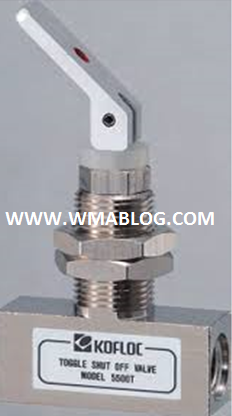

MODEL 5500 SERIES
The KOFLOC toggle valve is a shutoff valve developed for quick, reliable opening/closing operation. The special structure with a valve section and special O-ring excels in durability, while ultra-cleanliness assures high-sensitivity analysis.
Features
1.Lifting by 90 degrees and tilting for quick opening/closing.
2.Precision machining ensures high air-tightness.
3.The dead space has been minimized.
4.The valve can be used for both gas and liquid.
5.This panel-mount type for easy mounting on a panel is compact and ideal for instrumentation.
Applications
1.Scientific instruments, analyzers, and environmental measuring instruments
2.Compact portable measuring instruments
3.Instrumentation panel boards and various testing devices.
Standard Spesifications
|
Open/close operation |
90 derajat toggle |
|
Orifice diameter |
1.5 |
|
CV Value |
0.06 |
|
Maximum operating pressure |
0.8 MPa |
|
Materials of parts in contact with fluids |
(B) Brass, FKM, NBR, Ai (S) SUS304, FKM |
|
Connection end |
M8x1 (option: Rc 1/8, Rc 1/4) |
|
Mounting |
Panel mount |
