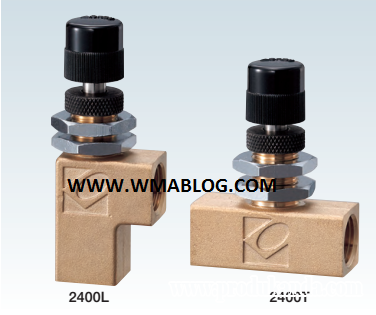

MODEL 2400 SERIES
This is a miniature needle valve at an affordable price with simplified construction that allows easy control of operation for fine regulation of gases and liquids. Its simplified structure is comprised of the components that are the minimum requirement, avoiding overspecification.
Features
1.Panel-mount miniature type
Compact, space-saving, and ideal for mounting on the instrumentation board
2.Compatible with both gases and liquids
3.All precision-machined components are perfectly cleaned
before assembly to ensure cleanliness of the product for the customer's use with peace of mind.
Applications
1.For flowmeters and pressure gauges
2.For pollution-related instruments and analyzers
3.For gas/liquid flow controls at laboratory
4.For integration into instrumentation boards
5.For sampling systems
Standard Spesifications
|
Number of turns of regulating screw |
Approx. 12 turns (Effective number of turns:5–12) |
|
Needle |
3 types |
|
Maximum operating pressure |
0.6 MPa |
|
Fluids |
Gas and liquid |
|
Materials of parts in contact with |
(B) Brass, NBR, SUS303, POM |
|
Connection end |
Rc 1/4 |
|
Rated flow ranges |
See the table below. |
