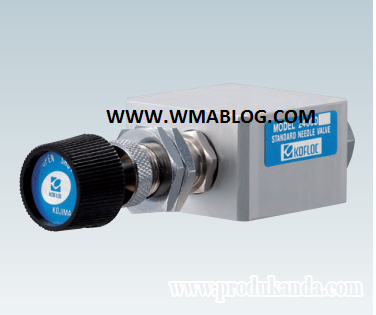

MODEL 2400D SERIES
Of all our products with a very small flow controlling function, this is a comparatively large flow control valve. This is a low-cost needle valve with a simple structure.
Features
1.Precision machining ensures satisfactory control characteristics.
2.In comparison with commercial simplified types, the number of revolutions of this needle valve is a maximum of 12 revolutions, permitting very smooth flow control.
Standard Spesifications
|
Number of turns of regulating screw |
Approx. 8–10 turns |
|
Needle |
2 types |
|
Maximum operating pressure |
1 MPa |
|
Materials of parts in contact with fluids |
(A) Al, brass, NBR, POM, SUS303 |
|
Connection end |
Rc 3/8, Rc 1/4 |
|
Fluids |
Gas and liquid |
|
Rated flow ranges |
See the table below. |
