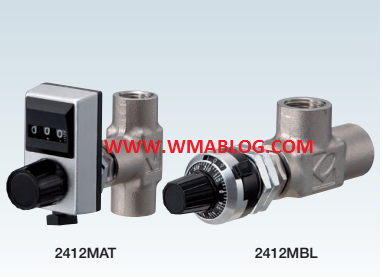

MODEL 2412M SERIES
This is an enhanced model of the KOFLOC Precision Needle Valve Model 2412 (see page 102), which now incorporates a multidial that allows the user to set desired flow rates by dial operations. This valve makes the most of the rotationto-flow linearity and repeatability performance of the 2412 needle.
Features
1.Since a precision needle valve usually has superior flow characteristics and repeatability, it can be used in place of a needle valve flowmeter.
2.Wide variations are available for both the needle valve (Type T,Type L, and so on) and the multidial (Standard Type, Round Type,and so on).
Note: No scale calibration is required for the multidial.
Applications
1.Detection of deteriorated filters
2.Substitute for a flowmeter
3.Detection of fluctuations of flow path resistance
Standard Spesifications
|
Regulating screw rotating speed |
Multidial: 10 turns (Overscale possible) |
|
Needle valve: Approx. 12 turns |
|
|
Multidial scale |
3-digit setting (000-999) |
|
Multidial type |
A: Standard multidial |
|
Fluids |
Gases and liquids |
|
Connection end |
Rc1/4; Rc1/8 (Optional) |
|
Rated flow ranges |
See Table of Rated Flow Ranges for Model 2412 |
