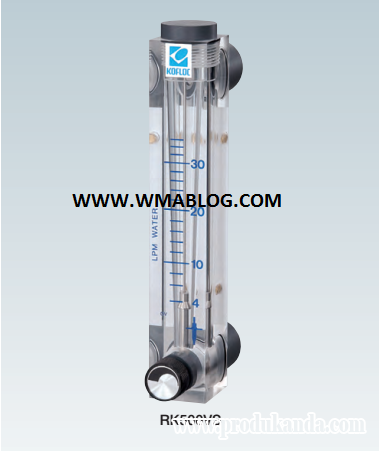

MODEL RK500 SERIES
This acrylic resin flow meter is designed for measuring large flow. The flow meter integral with a transparent acrylic panel permits easy reading, coming in two types according to the direction of flow – one from bottom to top and the other on the back side. It can be mounted on a panel with a support metal.
Features
1. Lightweight and easy flow reading
The acrylic panel is made integral.
2. Application to water
The flow meter can be used for measuring water at up to 75 L/MIN.
3. Low price
Simple structure and low price.
Spesifications
|
|
AIR L/MIN |
WATER L/MIN |
|
|
Flow range |
(RK500I, RK500S) 100-700, 100-1400 |
1-15 |
|
|
Accuracy |
Full scale ±3% |
||
|
Material |
Body•packing |
Transparent acrylic resin, NBR |
|
|
Float |
Stainless steel |
||
|
Proof pressure |
0.7MPa |
||
|
Temperature resistance |
65℃ (MAX) |
||
|
Connection |
NPT1 |
||
|
Remarks |
Models with a valve are S (direction of flow) only. |
||
