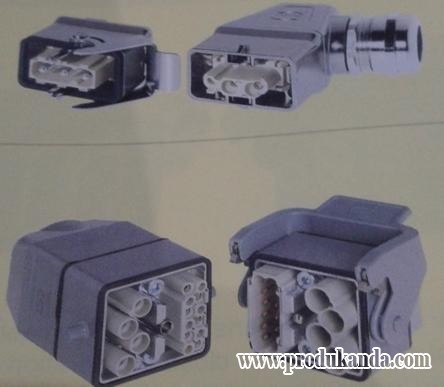

Han Modular Compact

Features :
- Compact design saves space
- Modular structure increases flexibilty
- Simple and quick assembly
- Robust design
- Two part grommet housing

Technical characteristic
- Hoods / housings
   Material : zinc die-cast
  Surface : nickelplated
  Locking element : stainless steel
  Hoods /housing sealing : NBR
  Limiting temperatures : -40 C ...+125C degree of protection acc. to DIN EN 60 529
  For coupled connector  : IP 65
  Mechanical working life
  - mating cycles : 500
 PE contact
 Wire gauge : 10 mm2 /AWG 8
 Stripping length : 10 mm
 Tightening torque : 1 Nm

Protectioncovers for housing, bulkhead mounting
Material : Polyamide
Locking element : polyamide
Hoods / housing sealing : NBR
Limiting temperatures : -40 C ... +125C degree of protection acc. to DIN EN 60 529
For coupled connector : IP 65
Flammability acc. to UL 94   V 0

Type : Han Modular Compact, Han Modular Twin, Han Modular Hinged Frames, Han Modular Docking Frame, Han Modular Eco
