Features
- For left hand or right hand applications available PE and connecting terminal for contact no. 1 are at the top in both types of installation
- Mountable is standard bulkhead housing and on standard rails by using of fixing elements
- Screw terminal with integrated wire protection.
Inserts
Number of contacs 40, 64 +PE
Electrical data acc. to EN 61 984 10A 250V 4kV 3
Rated current : 10A
Rated voltage : 250 V
Rated impulse voltage : 4 kV
Pollution degree : 3
Pollution degree 2 also 10A 230/440V 4kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance > 10
Material : polycarbonate
Limiting temperature : -40 C ... +125C
Flammability acc. to UL 94 V 0
Mechanical working life
- mating cycles : > 500
Contacs
Material : cooper alloy
Surface
Mating side : 3 um Ag
Termination side : tin plated
Contact resistance : < 4 m
Screw terminal
Wire gauge 0.2 ... 2.5 mm
AWG 24 .... 14
Tightening/test torque 0.5 Nm

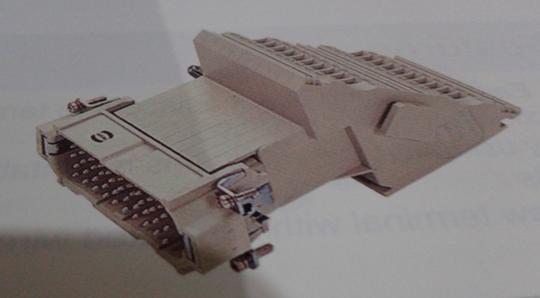

Type : Han D AV 40, 64+, Han D AV 20, 2x10, 4x4, Han E AV/ Han ES AV, 6,10,16,24+,
