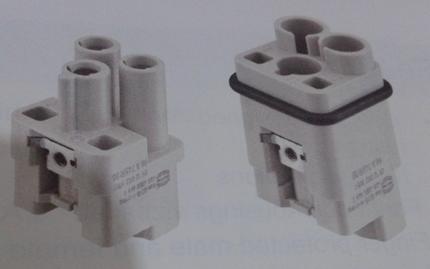

Features :
- High current rated compact designed connector for hoods/ housings sizeHan 3A
- Mating compatible to the axial screw version and provides 16 coding options
- Using of standard Han C crimp contacts and crimp tools which allows a cost
  optimised production of high quantities
- Finger protected male and female contacts

Technical Characteristics

Inserts
Number of contacts        2+PE
Electrical data
acc. to EN 61 984          40A   400V     6kV     3
Rated current                 40A
Rated voltage                400V
Rated impulse voltage  6kV
Pollution degree           3

Rated voltage acc to UL/CSA          600V
Insulation resistance                       > 10
Material                                              polycarbonate
Limiting temperatures                    -40 C .... 125 C
Flammability acc. to UL 94            V    0
Mechanical working life
Mating cycles                                    >500

Contacs
Material          : copper alloy
Surface
Hard-silver plated       : 3 um  Ag
Contact resistance     <1m
Crimp termination
mm2                      : 1.5 ... 10 mm2
AWG                       : 16 ... 8

Hoods / housings
Plastic hoods / housings
Material : polycarbonate
Flammability cc. to UL 94     V 0
Degree of protection acc. to DIN EN 60 529 for coupled connector    IP67
Metal hoods/ housings
Material    zinc die cast
acc.to DIN EN 60 529 for coupled connector   IP 44, IP 67 is achieved with seal screw 09 20 000 9918

Type : Han Q 2/0 crimp, Han Q 2/0 axial screw, Han Q 2/0 crimp high voltage, Han Q 2/0 axial screw high voltage, Han Q 5/0 Crimp, Han Q 5/0 quick lock, Han Q 7/0, Han Q 12/0, Han Q 8/0, Han Q 8/0 crimp, Han Q 8/0 quick lock, Han Q17, Han Q 4/2 crimp, Han Q 4/2 axial screw, Han Q Data RJ45
