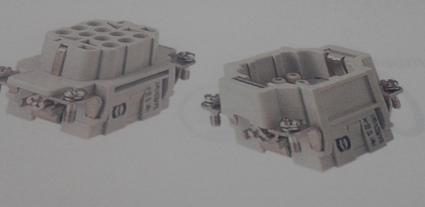

Harting Han E

Features : Available  in different termination techniques
- Han E         Crimp terminal
- Han E         Screw terminal
- Han Es       Cage clamp terminal
- Han ESS    Cage clamp terminal
- Han EE       Crimp terminal
- Han EEE    Crimp terminal

Han E covers a wide range of cross core sections
Wire protection for Han E screw
Suitable for hoods / housings of series Han B, Han M, Han EMV, Han HPR, Han Easy hood

Insert
Number of contacs      :   6, 10, 16, 24, 32 ( 2x 16), 48 ( 2x 24) + PE

Electrical data :
acc. to EN 61 984         : 16A, 500V, 6kV     3
Rated current   : 16A
Rated voltage  : 500V
Rated impulse voltage : 6 kV
Pollution degree : 3
Pollution degree 2 also : 16A    400V/ 690 V   6kV    2

Rated voltage
acc. to EN 61 984     16A    500V   6kV   3
Rated current : 16A
Rated voltage : 500V
Rated impulse voltage : 6 kV
Pollution degree : 3
Pollution degree 2 also : 16A    400/690V   6kV    2


Rated voltage :
acc. to UL/ CSA   600 V
Insulation resistance > 10
Material : polycarbonate
Limiting temperatures : -40 C ... +125 C
Flammability :acc. to UL 94    V 0
Mechanical working life
Mating cycles : 500

Contacs :
Material : copper alloy
Surface - hard - silver plated  3 um Ag
Contact resistance : 3 m
Cage clamp terminal- min  0.14mm2 / AWG 26
Cage clamp terminal - max  2.5 mm2/AWG 14

Hoods / Housings
Material : alumunium die cast
Surface : powder - coated
Locking element : Han- easy lock
Flammability acc. to UL 94   V 0
Mechanical  working life
-mating cycles : >500

Contacs
Material : copper alloy
Surface - hard - silver plated : 3 um Ag
Contact resistance : 3 m
Cage clamp terminal- min 0.14 mm2 / AWG 26
cage clamp terminal - max 2.5 mm2/AWG 14

Hoods / housiHan 48E, Han 92 EE, ngs

Material : Alumunium - die - cast
Surface : powder - coated
Locking element : Han - Easy Lock
Flammability  acc. to UL 94 : V 0
Hoods / housing seal : NBR
Limiting temperatures : -40 C ... + 125 C
degree of protection acc. to Din en 60 529
For coupled connector   : IP 65

Type : Han 6 E, Han 10 EE, Han 10E, Han 18 EE, Han 16E, Han 32EE, Han 40 EEE, Han 24E, Han 46EE, Han 64 EEE, Han 32E, Han 64 EE,
