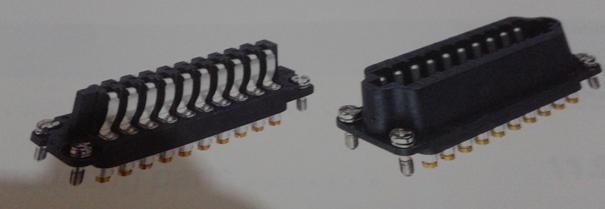

Harting Staf
Features
- Degree of protection for hoods / housings for coupled connector IP 44

Inserts
Number of contacs 6, 14, 20, 40 ( 2x20)
Electrical data acc. to EN 61 984

Rated current    : 10A
Rated volatge   : ~ 25 V / -60V
Rated voltage acc. to UL/CSA      50V
Insulation resistance  > 10
Material : polyamide
Limiting temperatures -40 C ... +100C
Flammability acc. to UL 94     HB
Mechanical working life
- Mating cycles   > 500

Contacs
Material : copper alloy
Surface
- hard-silver plated : 3 um   Ag
Contacts resistance  < 2m

Screw terminal
Wire gauge 1.5 mm
AWG 16
Tightening / test torque 0.25Nm

Solder terminal
Wire gauge 2.5 mm
AWG 14

Type :
Staf 6, staf 14, staf 20, staf 40.
