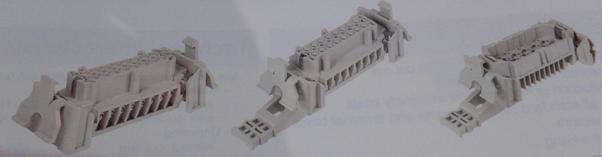

Harting Han Snap Latching parts without / with strain relief
Features
- Space saving
- Practical and easy handling
- Reduction of material and assembly costs
- For all standard Han B inserts and terminal block connectors
Technical characteristics
Min retention force on counter part
- Without guiding 200N
- With guiding 300N
Vibration resistance IEC 60 068, part 2-6, BN 74018
Resistance to shock IEC 60 068, part 2-27, BN 74018
Tightening torque of fixing screws/ coding elements : 0.8 Nm
Material : Thermoplastic resin, polycarbonate, RAL 7032, grey
Flammability acc. to UL 94 V 0
Limiting temperatures : -40 c .... +125C degree of protection acc. to DIN EN 60 529 for coupled connector IP 20
