Features

-          Combination of power and signal are in one conector

-          Crimp termination for power and signal area

-          Use of standard Han E and Han D contacts

Removal  of power  contacs

Push cross slotted  screw driver in the relevant hole of the contac  until it reaches the bottom

Withdraw the crimped contacts from the insert

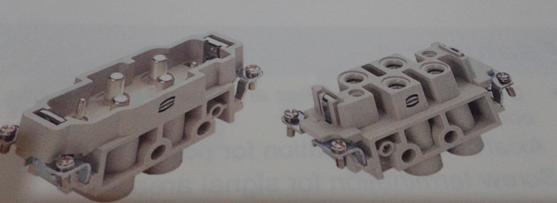

Insert

Number of contacts  8/24 + PE

Electrical data  acc to EN 61 984

Power  area  : 16A    230/400V    4kV    3

  Rated current          : 16A

Rated voltage conductor - ground         : 230 V

Rated  voltage conductor – conductor : 400 V

Rated impulse voltage : 4 kV

Pollution degree   : 3

Pollution degree 2 also : 10A     250V    4kV    2

Signal area         10A    160V    2.5kV     3

Rated current : 10A

Rated voltage : 160V

Rated impulse voltage : 2.5 kV

Pollution degree : 3

Rated voltage acc to UL/CSA   600/ 300V

Insulation resistance : ≥ 10 Ω

Material : polyamide

Limiting temperatures : -40 C …. +125C

Flammability acc. To UL 94  : HB

Mechanical working life

Mating cycles ≥ 500

Contacts

Power contacts

Material : copper alloy

Surface

-          Hard – silver plated     3µm Ag

-          Hard – gold plated      2µm Au over   3µm Ni

Contact resistance  : ≤ 1mΩ

-          Mm2      0.5 …. 4mm2

-          AWG       20 …. 12

Signal contacts

Material : copper alloy

Surface

-          Hard – silver plated     3µm Ag

-          Hard – gold plated      2µm Au over   3µm Ni

Contact resistance  : ≤ 1mΩ

-          Mm2      0.14 …. 2.5mm2

-          AWG       25 …. 14

Type : Han K 8/24, Han K 4/4, Han K 4/0, Han K 4/2, Han K 6/12, Han K 6/36, Han K12/2, Han K 4/8, Han K 6/6, Han K 8/0
