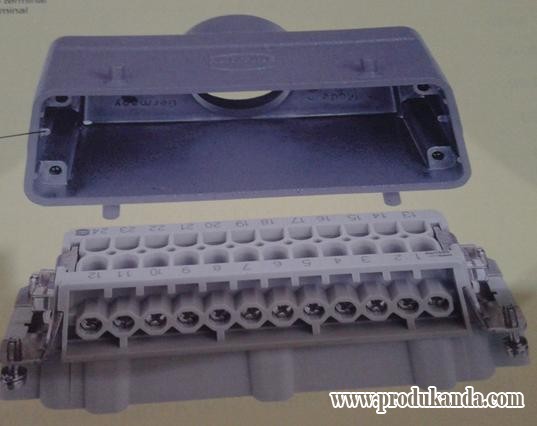

-          Designed for application up to 830V

-          Available in several termination techniques

-          No special tools required

-          Han Hv E screw requires special han Hv E housing


Number of contacs  3, 6, 10, 12 ( 2x6), 16, 20 (2x10), 32 (2x16) + PE + 2 additional contacs for safe high voltage connections

Electrical data acc. To DIN EN 61 984

Han Hv E 3, 6, 10, 12, 20 + PE     16A      830V   8kV    3

Rated current          : 16A

Rated voltage         : 830 V

Rated impulse voltage : 8 kV

Pollution degree   : 3

Pollution degree  2 also : 16 A      1000V     8kV      2

Or                                        16 A      720/1250     8kV      2

Relay contacs  : 16 A      50V0     6kV      3

Han Hv E 16, 32 + PE     16A      400/690V   6kV    3

Rated current          : 16A

Rated voltage conductor - ground         : 400 V

Rated  voltage conductor – conductor :  690 V

Rated impulse voltage : 6 kV

Pollution degree   : 3

Or 16 A      500V     6kV      3

Rated voltage

Acc to UL/CSA  : 600V

Relay contacts : 250V

Insulation resistance : > 10

Material : polycarbonate

Limiting temperature : -40 c … + 125C

Flammability  acc. To UL 94    V    0

Mechanical working life

-mating cycles : > 500

Contacs

Material :  Copper alloy

Surface

Hard silver plated  3 µm Ag

Contact resistance  : ≤ 1mΩ

Crimp terminal

Wire gauge    0.5 ….. 4 mm2

AWG  14

Tightening / test torque   : 0.5 Nm
