Features :
- Screw termination
- Wire - protection included
- Ideal for power supply application
- Termination with standard screw driver

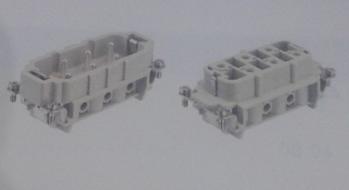

Inserts :
Number of contacts : 6, 12 ( 6x2), + PE
Electrical data acc. to EN 61 984 : 35A 400/690V 6kV 3
Rated current : 35A
Rated voltage conductor - ground : 400 V
Rated voltage conductor -conductcor : 690 V
Rated impulse voltage : 6 kV
Pollution degree : 3 or 35A 500V 6kV 3
Rated voltage acc. to UL/ CSA : 600V
Insulation resistance : > 10
Material : polycarbonate
Limiting temperatures : -40 C ... +125C
Flammability acc. to UL 94 : V 0
Mechanical working life
- Mating cycles : >500
Contacts :
Material : copper alloy
Surface
- hard-silver plated 3 um Ag
Contact resistance : <- 1m
Screw terminal
- Wire gauge : 6 mm2
- AWG : 10
- Tightening torque : 1.2 Nm
Hoods/ housings :
Material : alumunium die cast
Surface : powder-coated
RAL 7037
Locking element : Han - easy Lock
Hoods / housing sealing : NBR
Limiting temperatures : -40C ... +125C degree of protection acc. to DIN EN 60 529
For coupled connector : IP 65
Type : Han 6HsB, Han 12 HsB,
