Features :
- High density of crimping contacs, up to 128 contact / connector
- Time saving rapid termination by useof crimping contcs
- For requirments up to 250 V / 10A
- Gold and silver contacs available
- Suitable for thermo- and 1 mm F.O contacs

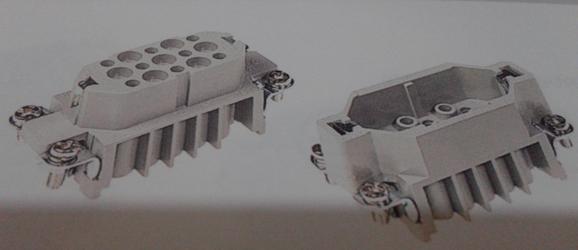

Insert
- Number of contact : 7,15, 25, 40, 50, 64, 80, 128, 50 ( 2x 25), 80 (2x 40), 128( 2x 64) +PE
Electrical data :
- Han 3 A/ Han 4A : 10A 250V 4 kV 3
Rated current : 10 A
Rated voltage : 250 V
Rated impulse voltage : 4 KV
Pollution degree : 3
Pollution degree 2 also : 10A, 230/400V, 4kV 2
for wrap terminal only. 10A, 250 V 4kV 2
Rated voltage : 600V
for wrap terminal acc to CSA : 2A, 30 V
Contacs :
Material : copper alloy
Surface - hard - gold plated : 2 um Au over 3 um Ni
Surface - hard - silver plated : 3 um Ag
Contact resistance :<- 3 um Ag
Crimp terminal - min : 0,14mm2/ AWG 26
Crimp terminal - max : 2.5 mm /AWG 14
Wire Wrap terminal : 1 x 1 mm - length 22mm
Diagonal 1.34 - 1.45 mm contact
Spacing 5.08mm ( 40 + 64 poles)
Contact spacing 5.3mm ( 15 + 25 poles)
Han - quick Lock - min : 0.25 mm2/ AWG 24
Han - quick Lock - max : 1.5 mm2/ AWG 16
Hoods / housing :
Material : Alumunium die cast
Surface : powder coated RAL 7037 (grey)
Locking element : Han - Easy Lock
Flammability acc. to UL 94 : V 0
Hoods / housing seal : NBR
Limiting temperature : - 40 C ... +125 Celcius
For couple connector : IP 65
Type :
Han 7 D, Han 8D, Han 15D, Han 25D, Han 50D, Han 24DD, Han 42 DD, Han 40D, Han 72DD, Han 64D, Han 108 DD, Han 80D, Han 144DD, Han 128D, Han 216 DD
