Specifications :
- Transmitter (standard):
- Velocity range: 0 ~ ± 40ft/s (0 ~±12m/s)
- Accuracy: ±1% of reading
- Repeatability: 0.2%
- Power supply: 11.1V rechargeable Lithium Battery
- Power for 16 hours
- Output: 0/4~20mA, maximum 750Ω
- Transducers (magnetic clamp-on sensor rack)
- Measurement Pipe range: 25mm ~ 1200mm
- Protection rating: IP68
- Temperature range: -10℃ ~ 80℃)
- Transducer cable standard length: 16ft (5m)
The instrument setup and measurement displays are subdivided into more than 100 independent menus. The operator can input parameters, modify settings or display measurement results by “visiting” a specific menu. These menus are arranged by 2-digit serial numbers from 00~99, then using +0, +1, etc. Each menu ID code has a defined meaning. For example, menu 11 is the pipe outside diameter, while menu 25 is the mounting spacing between the transducers.
Transmitter (standard) :
- Flow range: 0 to ±40ft/s (0 to ±12m/s)
- Accuracy: ±0.5 of reading
- Repeatability: 0.3%
- Power supply: internal lithium battery with 8 hours of use
- Output: 0/4~20mA, maximum 750Ω
- Power consumption: 1W
- Weight: 3.3lbs (1.5kg)

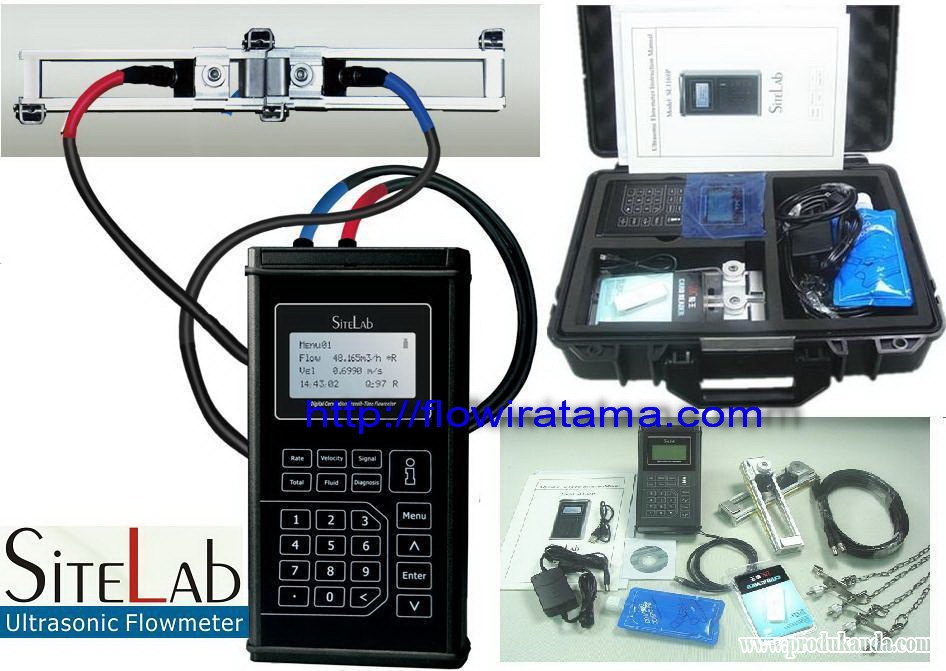

Configuration Standart :
- Flow Transmitter
- Transducer with scaled rack
- Transducer Cable
- Pipe strips
- Card reader
- 4-20mA cable
- Grease Coupling Compound
- Install CD
- Battery charger
- Operating Manual
