• Suitable for Han D® / DD® inserts
• Can be combined with standard crimp contacts in one connector
if needed
• Iron and constantan contacts according to IEC 60584 type J
• According to EUROMAP 14, Part 1
• Suitable for Han E®, Han® EE / EEE, Han® Q and Han A®
inserts
• Can be combined with standard crimp contacts in one connector
if needed
• Iron and constantan contacts according to IEC 60584 type J
• According to EUROMAP 14, Part 1
• Connector for temperature measurement conductors - Suitable
for injection moulding machines
• Iron and constantan contacts according to IEC 60584 type J
• According to EUROMAP 14, Part 1

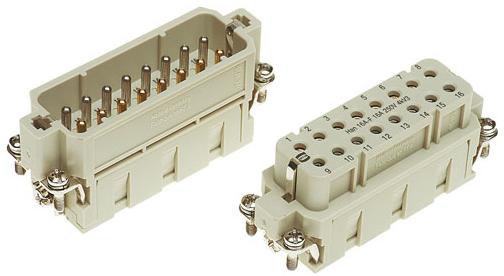

Technical characteristics
Technical characteristics
Contacts 16
Electrical data acc. to IEC
61984
16 A 250 V 4 kV 3
Rated current 16 A
Rated voltage 250 V
Rated impulse voltage 4 kV
Pollution degree 3
Rated voltage acc. to UL 600 V
Insulation resistance ≥1010 Ohm
Limiting temperatures -40 °C ... 125 °C
Flammability (insert) acc. to
UL 94
V 0
Mating cycles ≥500
Tightening torque 0.5 Nm
Material (insert) polycarbonate
Colour (insert) RAL 7032 (light grey)
