Features
- Per 1 connection for power input, power out put and to device
- Male and female inserts finger protected
- 4 power contcs; 2 signal contacts
- Metal housing
- Locking lever stainless steel

Technical characteristics

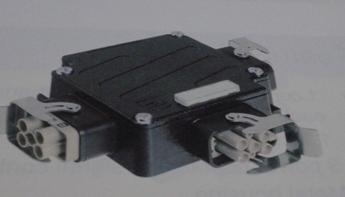

Han power T
Number of contacs
-Power contacts       4+ PE
- Signal contacts     2

Electrical Data  acc. to EN 61 984
Power side : 40A      400/690V     6kV   3
Rated current : 40 A
Rated voltage conductor ground  400V
Rated voltage conductor - conductor 690 V
Rated impulse voltage   4kV
Pollution degree    3

Rated voltage  acc. to UL/CSA      600/250V
Insulation resistance > 10
Material : zinc -die cast
Limiting temperatures : -40 C .... +125C
Flammambility acc to UL 94 V   0
Mechanical working life
- mating cycles  > 500 defree of protection acc. to DIN EN 60 529 IP 65

Contacts :
Material : Copper alloy
Surface
- hard-silver plated  3 um   Ag
- hard - gold plated    2um   Au over 3 um Ni
Contact resistance  < 0.3 m
Crimp terminal
- mm2         4 ...... 6 mm2     0.14 ..... 2.5 mm2
-AWG         12 .... 10/26 .... 14

Max. insulation diameter
- power contacs : 5 mm

Type : Han power T, Han power T with 3x Han-modular Twin, Han Power T with 3x Han Q 2/0, Han power T with 3x Han Q 5/0,
