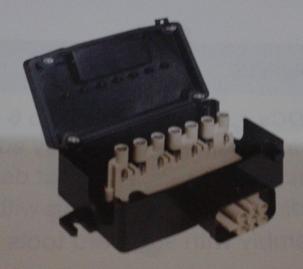

Han power
Features
- 6 IDCs + PE for 2.5 mm up to 6 mm wire gauge
- No interuption of the energy supply
- Space saving and compact design
- Leading protective ground within the insert
- Assembly with standard tools

Technical characteristics
Han Power S
Number of contacts
- Power contacs : 4 + PE
- Signal contacs  : 2

Electrical data  acc to EN 61 984
Power side        40A 400/690V 6kV 3
Rated current :    40A
Rated voltage conductor -ground : 400V
Rated voltage conductor - conductor    690V
Rated impulse voltage 6 kV
Pollution degree  3

Signal side
Rated current : 10A 250V 4kV 3
Rated voltage : 10A
Rated impulse voltage 4kV
Pollution degree : 3

Rated voltage
acc. to UL/CSA 600 / 250 V
Insulation resistance   > 10
Material : polycarbonate
Limiting temperatures  -40 C ..... +125C
Flammability acc. to UL 94   V   0
Mechanical working life
- mating cycles   > 500
Degree of protection acc. to DIN EN 60 529 IP 65


Contacs
Material copper alloy
Surface
- hard-silver plated 3 um Ag
- hard - gold plated  2 um   Au over 3 um  Ni

Contact resistance  < 0.3m
Crimp terminal
- mm2 2.5 .... 6 mm2/ 0.14  .... 2.5 mm2

-AWG  14 ... 10/26  ... 14
Max. insulation diameter
-Power contacs    : 5 mm

Cables
Design of conductoracc. to DIN VDE 0281
                                                 DIN EN 60 228

Single strand
Wire gauge : 2.5 mm2
- Number of single strands : 50 x 0.25
- Outer diameter  3.6 mm
Wire gauge
- Number of single strand 56 x 0.3 mm
- Outer diameter  4.2 mm

Wire gauge
- Number of single strands 84 x 0.3 mm
- Outer diameter  4.8 mm

Type : Han power S with 2x Han Q4/2, Han power S with 1x Han Q4/2 with power supply 24V, Han power S with 1 x Han Q 4/2 with maintenance switch, Han-Power S with functional LED Display and on/off switch, Han-power S with 1x Han Q 8/0, Han power S with 2x Han Q 8/0, Han -power S with 1x Han Q 4/2, metal.
