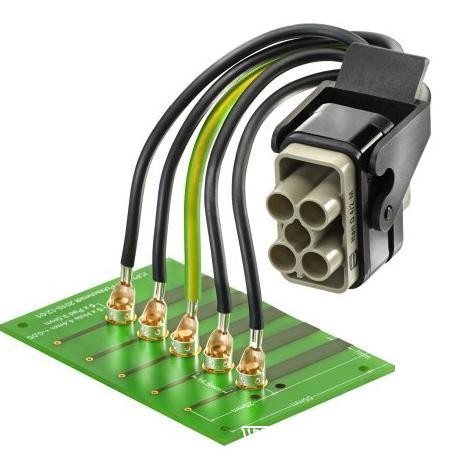

Features :
- Solder free PCB termination
- PCB Contact with locking element
- Stamped contact element
- Stamped contact element
- Automatic crimping process compatible
- For use with different Han connector
- Cost - effective
- Easy handling
- Fast assembly to PCB
- Contacs with pin
Locking directly on the PCB
- Contact without pin
Fast positioning with plastic adapter
Technical characteristics :
Material copper alloy
- hard silver plated 3um Ag
Contact resistance < 2m
Locking
Material : Copper alloy
Surface finish : passivation
Current 10 mm2 standard wire 60A
Voltage Clearance and creepage distances have to be considered
Board density t= 1.6 - 2.0 mm
Type : Han fast lock, PCB adapter for Han DD, Han DD with PCB adapter, Han E insert with PCB adapter, PCB adapter for Han Q 4/2, Han Q 4/2 insert with PCB adapter, PCB adapter for Han Q 5/0, Han Q 5/0 insert with PCB adapter, PCB adapter for Han Q 7/0, Hainsert with Q 7/0 insert wih PCB adapter, PCB adapter for Han Q 8/0, Han Q 8/0 insert with PCB adapter, PCB adapter for Han Q 12/0, Han Q 12/0 insert with PCB adapter, PCB adapter for Han - module, Insert with PCB adapter, PCB adapter for Han DDD Module, PCB adapter for Han DDD module, Han PCB adapter
