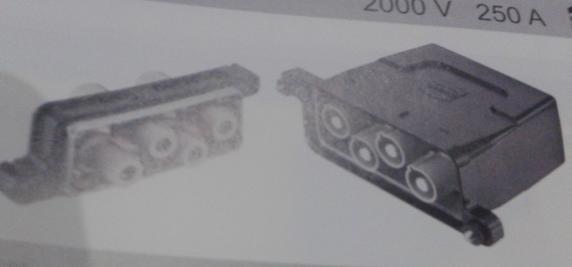

Harting Han HC Modular

Features :

- CrimpTermination
- Designed for thick cable insulations
- For crimp dies acc. to DIN 46 235
- For crimping tools with 13 t  pressing force

Technical characteristics
Insert
Electrical data acc. to DIN EN 61 984
Rated current                    250 A
Rated voltage                    2000 V
Rated impulse voltage   12kV
Pollution degree                3
Insulation resistance      > 10
Material                               polycarbonate
Limiting temperatures     -40  C .... + 125 C
Flammability acc. to UL 94      v   0
Mechanical working life   > 5000 mating cycles

Contacts
Power contacts
Material : copper alloy
Surface
-hard - silver plated      3 um Ag
Contact resistance     < 0.3 m
Crimp terminal
- mm2     35 ... 70 mm2
Max. insulation diameter     18 mm
Crimp dies     acc. to DIN 46 325
Pressing force requirement    130 kN

Frame
Tightening torque
Of the fixing screw   : 0.5 Nm
Material    : stainless steel

Type : Han HC Modular 250 crimp, Han HC modular 250 enlarged, Han HC 350, Han HC Modula 350, Han HC Modular 350 crimp, Han HC Modular enlarged, Han HC Modular 650, Han HC Modukar 650 crimp, Han Hc Modular 650 enlarged
