General description
High connector for motor applications in the field of railway rolling stock
Robust and compact design
Easy assembly due to split hood and surface mounted housing
High EMC resistance
Large space for cables

Features
Suitable for extreme environmental conditions
Many assembly possibilities due to separate assembly panels
External termination 0f PE termination on hood and surface mounted housing
New cable gland for secure and visible connection of screening braid of shielded cables

Technical characteristics
Material : Alumunium die cast
Surface :powder coated, RAL 9005 ( black)
Limiting temperatures : -40 C .... 125C
Locking : Screw locking, M6 stainless steel
Frame : 3 and 4 contacs for Han  HC Modular 350 stainless steel
                3 contacts forHan HC Modular 650 stainless steel

Frame  : short and long version stainless steel

Cable gland : Special cable gland with self tightening clamp for shielded cables
Degree of protection acc. to EN 60 529 in locked position : IP 68

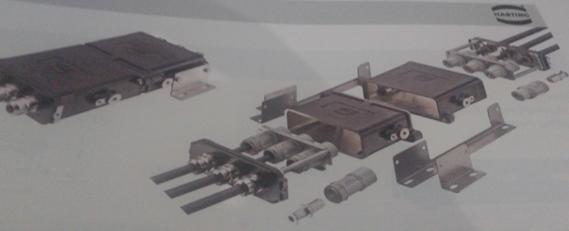

Type : Han 24 HPR Easy Con,
