Features

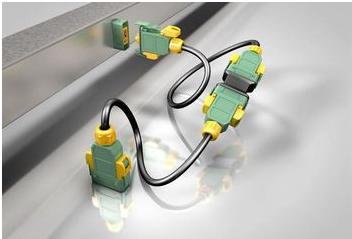

. New: First connector for potential equalization
• Slim, space saving design
• Low cost plastic hoods and housings
. Colours: green and yellow
• Separate axial screw contacts can be terminated
without any special tools directly to the wire
Technical characteristicsSpecifications DIN EN 60 664-1
DIN EN 61 984
Hoods/Housings
Hoods/Housings
Material
- hoods/housings polycarbonate
- seal NBR
- cable seal polyamide
Limiting temperatures -40 °C ... +85 °C
Flammability acc. to UL 94 V 0
Degree of protection
according to DIN EN 60 529
for coupled connectors IP 65
Mechanical working life ≥ 500 mating cycles
Cable diameter 7.5 - 14 mm
Modules
Number of contacts 1
Material polycarbonate
Limiting temperatures -40 °C ... +125 °C
Flammability acc. to UL 94 V 0
Mechanical working life ≥ 500 mating cycles
Crimp Contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
Contact resistance ≤ 0.3 mΩ
Crimp terminal
- wire gauge1) 10 ... 35 mm²
Axial Screw Contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
Contact resistance ≤ 0.3 mΩ
Screw terminal
- wire gauge1) 10 ... 35 mm²
- AWG 6 ... 2
- hexagonal driver SW 4
- tightening torque
