integrated cable glands
• Capable for applications according protection class II
• Same panel cut out as Han® B housings, bulkhead
mounting
• Optional PE contact module for hold the protective
ground conductor
• Not mating compatible with series Han® B

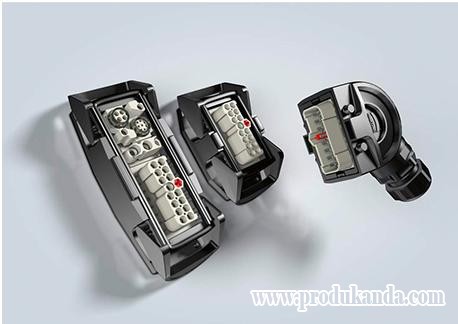

• New hoods/housings series made of thermoplastic
material with excellent mechanical properties and
high resistance against environmental influence
• Weight and cost optimised
• Quick assembly without screws and tools („click and
mate“)
• One extra module fits into the Han-Eco® hoods/housings
compared to equivalent size of Han® B series
Technical characteristics
Technical characteristics
Hoods/Housings
Material
- Hoods/Housings Polyamide,
fibre-glass reinforced
- Locking element Polyamide,
fibre-glass reinforced
- Hoods/Housings seal NBR / FPM
Limiting temperatures -40 °C ... +125 °C
Flammability
- acc. to UL 94 V 0
- acc. to NFF 16 101 / 16 102 F2 / I3
Degree of protection acc. to
DIN EN 60 529
for coupled connector IP 65
Type : Han Eco hoods/housing size 6B, Han Eco hoods/ housing size 10B, Han Eco hoods/housing size 16B, hoods/ housing size 24B,
Type : Han Eco hoods/housing size 6B, Han Eco hoods/ housing size 10B, Han Eco hoods/housing size 16B, hoods/ housing size 24B,
